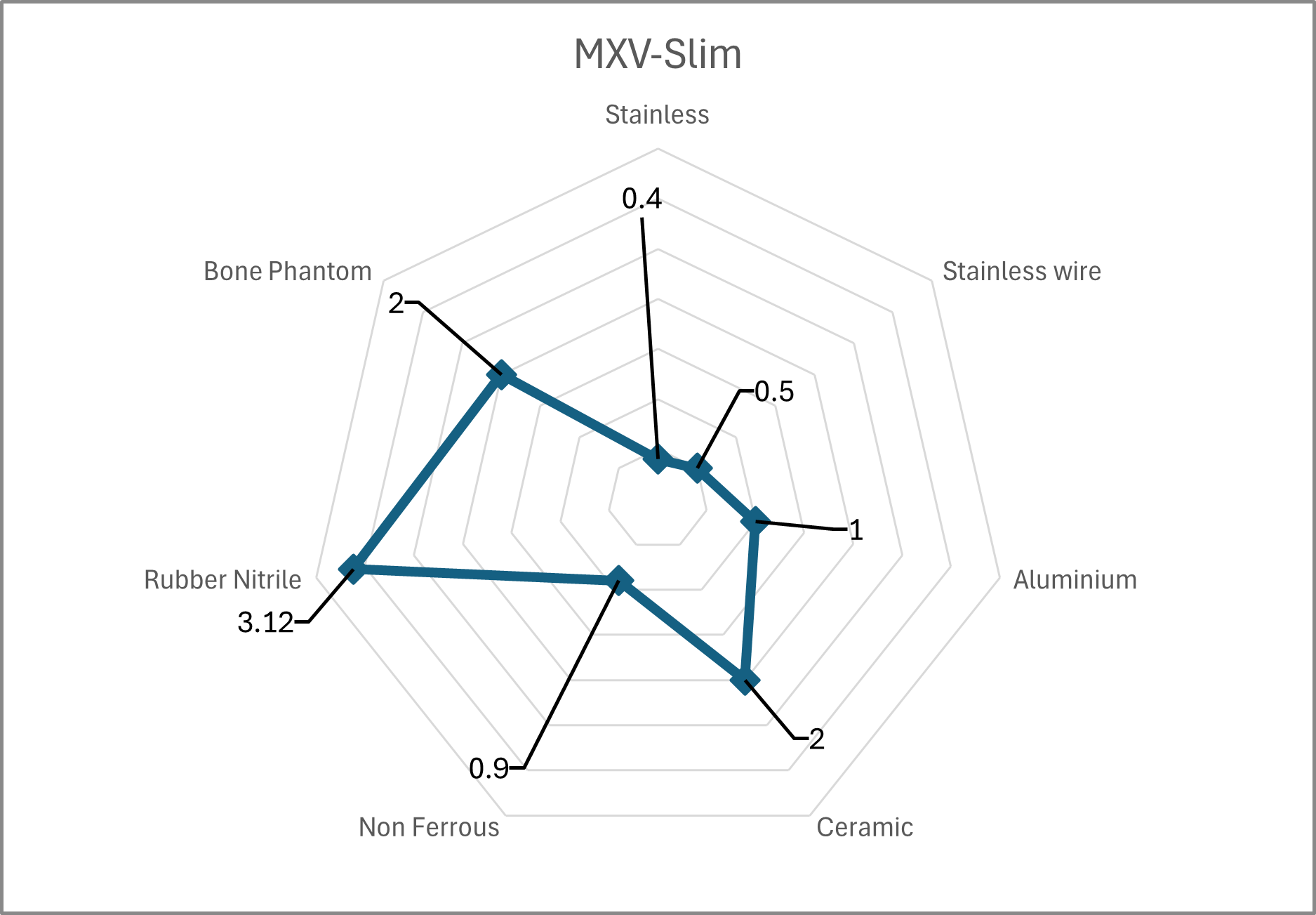

• Ultra-High-Definition X-ray technology: Marelec provides a diverse range of options for detecting foreign bodies, using Ultra High-Definition X-ray technology tailored to each customer’s specific requirements. It particularly shines in its capability to detect poultry bone remnants as small as 2mm with a very low false rejection rate, reducing the number of operators needed to check incorrectly rejected products.

• Unique belt inclination principle: This supports a more hygienic working process – with no risk of curtains touching products up to 80 mm high, cross-contamination between products can be avoided.

• Enhanced vision technology: Marelec can also provide advanced vision technology integrated with the existing X-ray technology, enabling precise detection of non-dense materials on the product’s surfaces.

• High capacity: The belt width of 600 mm is a unique setup in the market. This allows (depending on the customer’s product) for three streams of 125 pieces per minute or two streams of larger products at 100 pieces per minute.

• Advanced hygiene and maintenance accessibility: The poultry model features an IP69K rating for robust water resistance, double labyrinth sealings at electrical cabinet doors, and an open structure for easy cleaning and quick belt removal.

Rework configurations

When a product with contaminants or bone fragments is detected, Marelec offers different setups to reject that specific product, deliver it to an operator for manual inspection and then re-enter it into the stream for a final inspection to make sure no contaminants are left in the item.
